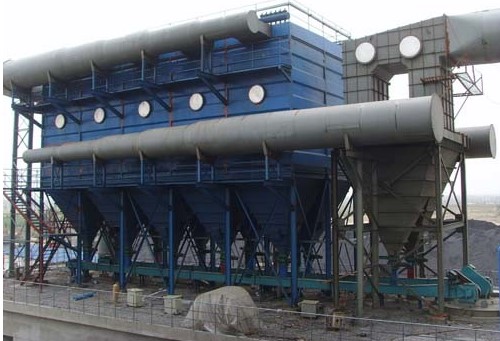

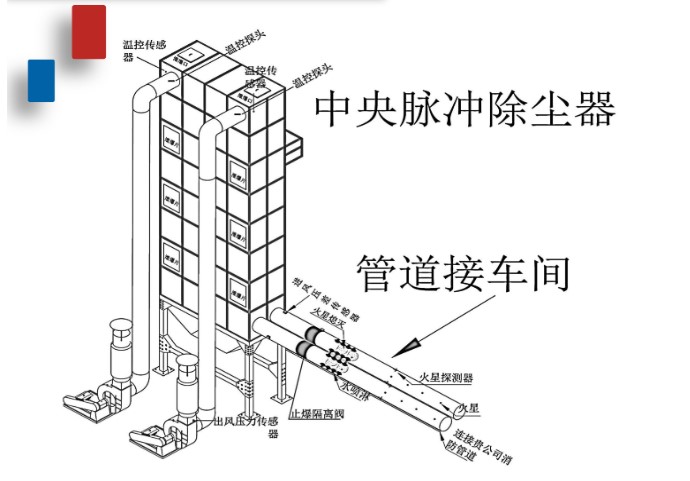

Pulse dust removal equipment
working principle:Pulse dust collector refers to the method of removing dust attached to the filter medium (bag or filter cartridge) by blowing compressed air; Depending on the size of the dust collector, there may be several sets of pulse valves controlled by a pulse controller or PLC. Each set of pulse valves is opened to remove dust from the bag or filter cartridge it controls, while the other bags or filter cartridges work normally. After a period of time, the next set of pulse valves is opened to clean the next part of the dust collector, which consists of ash hopper, upper box, middle box, lower box, etc. The upper, middle, and lower boxes are divided into compartments. During operation, dusty gas enters the ash hopper through the air inlet duct. Coarse dust particles directly fall into the bottom of the ash hopper, while fine dust particles enter the middle and lower boxes upwards with the turning of the airflow. Dust accumulates on the outer surface of the filter bag, and the filtered gas enters the upper box to the clean gas collection pipe exhaust duct, and is discharged to the atmosphere through the exhaust fan. The dust cleaning process involves first cutting off the clean air outlet duct of the room, so that the bag in the room is in a state of no airflow passing through (stopping the air and cleaning the dust in each room). Then, the pulse valve is opened and compressed air is used for pulse blowing to clean the dust. The shut-off valve is closed for a sufficient time to ensure that the dust peeled off from the filter bag settles in the ash hopper after spraying, avoiding the phenomenon of dust adhering to the adjacent filter bag surface with the airflow after leaving the filter bag surface. The filter bag is thoroughly cleaned, and the exhaust valve, pulse valve, and ash discharge valve are fully automatically controlled by a programmable controller. The dusty gas enters through the air inlet, and when passing through the ash hopper, some large particles of dust in the gas are separated by inertia and gravity, and directly fall into the bottom of the ash hopper. The dusty gas enters the filter bag filtration area of the middle box after passing through the ash hopper. The gas passes through the filter bag, and the dust is trapped on the outer surface of the filter bag. The purified gas enters the upper box through the filter bag opening and is then discharged through the air outlet
Applicable occasions:Suitable for use in polishing workshops, woodworking workshops, hardware workshops, polishing workshops, etc.
Advantages:High processing air volume, good dust removal effect, high degree of automation, simple structure, beautiful appearance, convenient control, energy-saving, and stable performance.

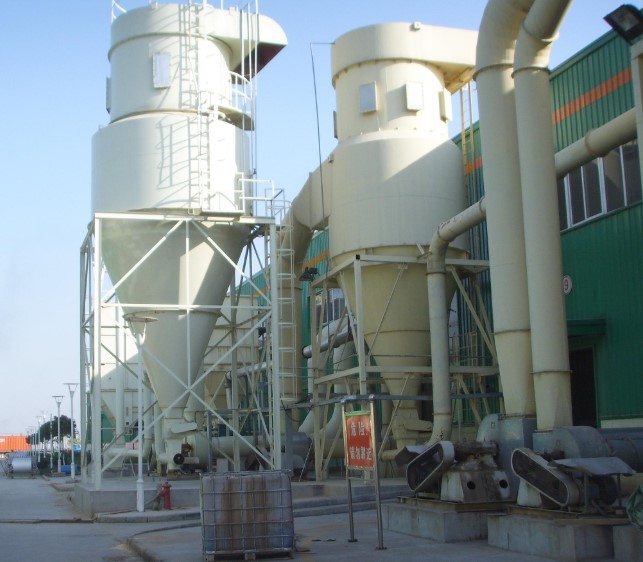

Cyclone dust removal equipment
Applicable locations:Used in woodworking workshops, furniture production, hardware product workshops, toy workshops, cutting workshops, and other places.
Advantages:There are no moving parts inside the device, making maintenance convenient, small in size, and simple in structure.
Wet dust removal equipment
Scope of application:Purification and absorption of various industrial dust, organic odor dust, acidic and alkaline waste gases, harmful gases, chemical and pharmaceutical industries, food processing, metallurgy, casting, organic materials, etc.
